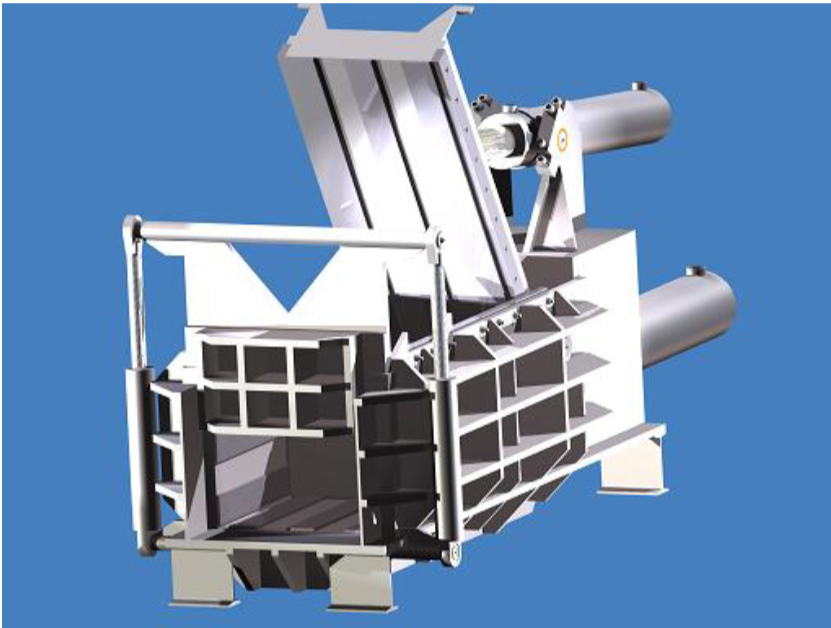

Press for baling cans

Press for baling cans

SANVI machining capabilities

Turning up to 10000mm (diam 700mm)
Turning up to 1000mm (diam 1400mm)
CNC turning up to 5000mm (diam 1400mm)
CNC milling up to 800mmx800mmx650mm
Boring up to 1800mmx1600mmx1200mm
Grinding up to 5000mm (weight up to 1000kg)
Honing up to 8000mm (inside diameter up to 600mm)

For more information contact us at office@sanvi.co.rs or +381 37 717 700

Ball Valves

 Posted on March 24, 2024  |

SANVI Code Product name Size Connecting size Max. pressure (bar) Color plating
KHB-G1/8 Two way ball valve DN 4 ⅛" 500 Yellow zinc
KHB-G1/4 Two way ball valve DN 6 ¼" 500 Yellow zinc
KHB-G3/8 Two way ball valve DN 10 ⅜" 500 Yellow zinc
KHB-G1/2 Two way ball valve DN 15 ½" 500 Yellow zinc
KHB-G3/4 Two way ball valve DN 20 ¾" 350 Yellow zinc
KHB-G1 Two way ball valve DN 25 1" 350 Yellow zinc
KHB-G11/4 Two way ball valve DN 32 1¼" 350 Yellow zinc
KHB-G11/2 Two way ball valve DN 40 1½" 350 Yellow zinc
KHB-G2 Two way ball valve DN 50 2" 350 Yellow zinc
KHB3K-G3/8 Three way ball valve DN 10 ⅜" 500 Yellow zinc
KHB3K-G1/2 Three way ball valve DN 15 ½" 500 Yellow zinc

Air Heat Exchangers

 Posted on March 24, 2024  |

PRODUCT NAME Photo front (click to enlarge) Photo back (click to enlarge) At Δt=20°C cooling (kcal/h) At Δt=30°C cooling (kcal/h) At Δt=40°C cooling (kcal/h) Max. oil flow (lt/min) Max. Pressure (bar) Oil Connection Size ACR-20 2700d/d 220V AC 0.09A Monofaze 700 1.100 / 35 10 ½" BSP 4010 M 24VDC 937 1.387 / 40 24 ½" BSP 4010 M 220VAC / 937 1.387 / 40 24 ½" BSP 4015 M 24VDC 2. [Read More]

Seals

 Posted on March 24, 2024  |

Materials Nitrile (NBR) It is suggested for the biggest part of sealing applications and it has a very common use. Nitrile (NBR) is a Butadiene - Acrylo Nitrile (ACN) is a polymer. The percentage of acrylo nitrile in the nitrile compound varies between 30% and 50%. The variation in the percentage of ACN changes the volume, gas permeability, elasticity and compression set of the compound used in mineral oils, grease and fuel. [Read More]

Parts for Hydraulic Cylinders

 Posted on March 24, 2024  |

Honed tubes Honed tubes

Chrome plated and induction hardened bars Chrome plated and induction hardened bars

Ball joints Ball joints

Spherical bearings Spherical bearings

Pistons Pistons

Pilot boss Pilot boss

Oil ports Oil ports

Hydraulic Cylinders Shape F

 Posted on March 24, 2024  |

Dimensional chart (dimensions in mm) Code L P D1 D2 D3 Z l1 l2 l3 l4 l5 G D-25/12;14;18 90 M16x1.5 36 88 75 6.6 22.5 28.5 8 9 12 M10x1 D-32/14;18;22 99 M16x1.5 40 110 92 9 25 32.5 10 9 14 M12x1 D-40/18;20;22;25;28 105 M16x1.5 51 125 106 9 27 37 12 9 16 M16x1.5 D-50/22;25;28;32;36 125 M22x1.5 60.3 150 126 11 31 41 12 11 20 M20x1.5 D-63/28;32;36;40;45 134 M22x1. [Read More]

Hydraulic Cylinders Shape D

 Posted on March 24, 2024  |

Dimensional chart (dimensions in mm) Code L P D1 D2 D3 Z l1 l2 l3 l4 l5 G D-25/12;14;18 90 M16x1.5 36 88 75 6.6 22.5 28.5 8 9 12 M10x1 D-32/14;18;22 99 M16x1.5 40 110 92 9 25 32.5 10 9 14 M12x1 D-40/18;20;22;25;28 105 M16x1.5 51 125 106 9 27 37 12 9 16 M16x1.5 D-50/22;25;28;32;36 125 M22x1.5 60.3 150 126 11 31 41 12 11 20 M20x1.5 D-63/28;32;36;40;45 134 M22x1. [Read More]

Hydraulic Cylinders Shape C

 Posted on March 24, 2024  |

Dimensional chart (dimensions in mm) Code L P D1 D2 l l1 l2 l3 l4 l5 l6 l7 G C-25/12;14;18 90 M16x1.5 36 12 70 22.5 28.5 20 9 12 56 80 M10x1 C-32/14;18;22 99 M16x1.5 40 17 80 25 32.5 25 9 14 68 102 M12x1 C-40/18;20;22;25;28 105 M16x1.5 51 25 88 27 37 32 9 16 76 126 M16x1.5 C-50/22;25;28;32;36 125 M22x1.5 60.3 30 104 31 41 40 11 20 89 149 M20x1. [Read More]

Hydraulic Cylinders Shape B

 Posted on March 24, 2024  |

Dimensional chart (dimensions in mm) Code L P D1 d1 l1 l2 l3 l4 l5 R S G B-25/12;14;18 107 M16x1.5 36 12 37.5 28.5 17 9 12 18 13 M10x1 B-32/14;18;22 121 M16x1.5 40 17 45 32.5 22 9 14 20 16 M12x1 B-40/18;20;22;25;28 130 M16x1.5 51 20 50 37 25 9 16 25.5 19 M16x1.5 B-50/22;25;28;32;36 155 M22x1.5 60.3 25 59 41 30 11 20 30 23 M20x1.5 B-63/28;32;36;40;45 166 M22x1. [Read More]

Hydraulic Cylinders Shape A

 Posted on March 24, 2024  |

Dimensional chart (dimensions in mm) Code L P D1 d1 l1 l2 l3 l4 l5 R S G A-25/12;14;18 107 M16x1.5 36 12 37.5 28.5 17 9 12 18 13 M10x1 A-32/14;18;22 121 M16x1.5 40 17 45 32.5 22 9 14 20 16 M12x1 A-40/18;20;22;25;28 130 M16x1.5 51 20 50 37 25 9 16 25.5 19 M16x1.5 A-50/22;25;28;32;36 155 M22x1.5 60.3 25 59 41 30 11 20 30 23 M20x1.5 A-63/28;32;36;40;45 166 M22x1. [Read More]

Hydraulic Cylinders

 Posted on March 23, 2024  |

General information Dimenstion Value Piston diameter D max = 400mm Rod diameter d max = 400mm Stroke H max = 8.000mm We produce several types of hydraulic cylinders for applications in all areas. Some are especially designed for: construction equipment agricultural machinery transport equipment mining industrial and power plants machines for processing of materials shipbuilding, etc. We produce single and double-acting cylinders, telescopic cylinders, as well as several specific types of cylinders. [Read More]
